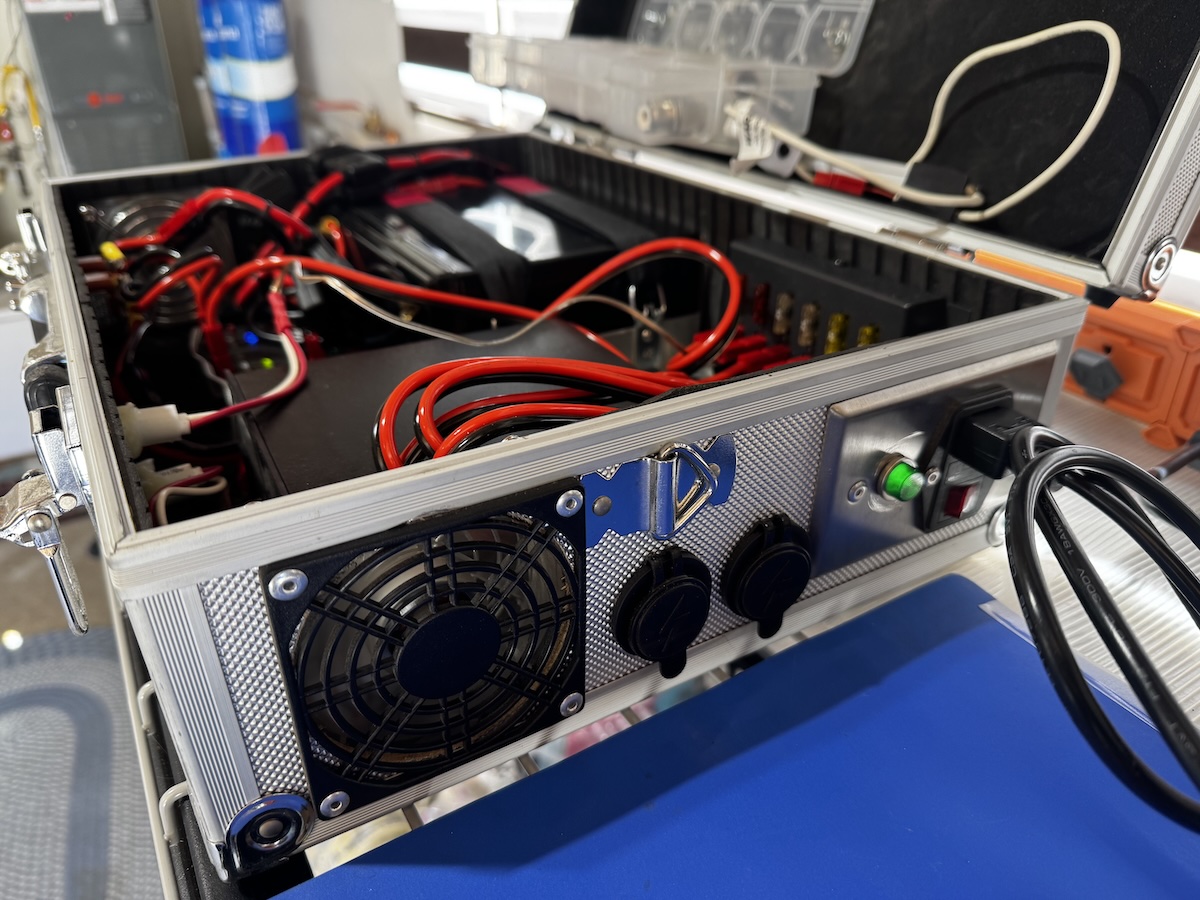

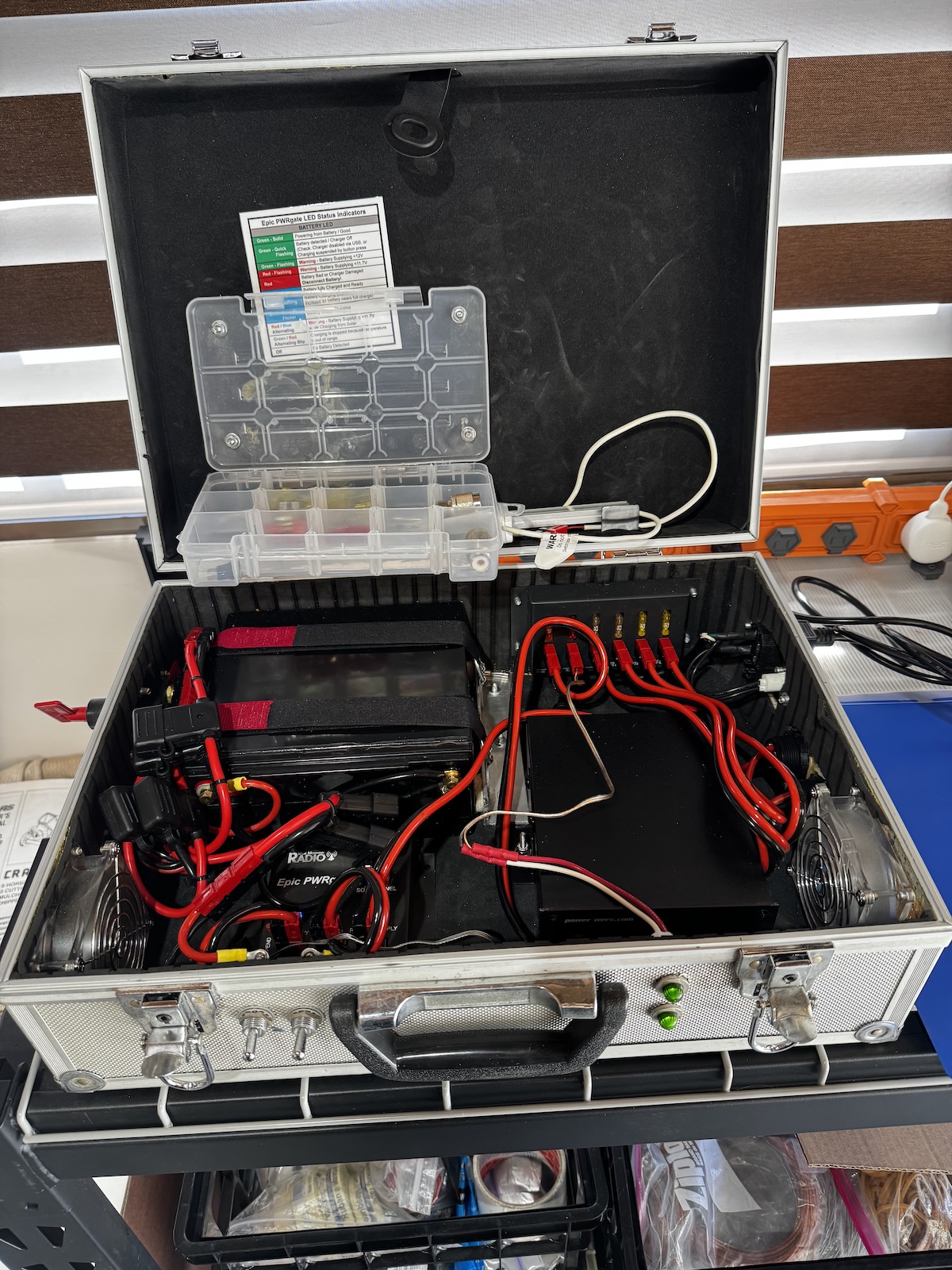

Field Post Case Power Supply, main items
Objective: provide portable battery-power support for Field Post with options for AC grid powering, solar power, and additional battery expansion.
Also includess
- Fuses everywhere, spare fuses
- Anderson Power Pole connectors where-ever possible
- Ingress and egress case fans

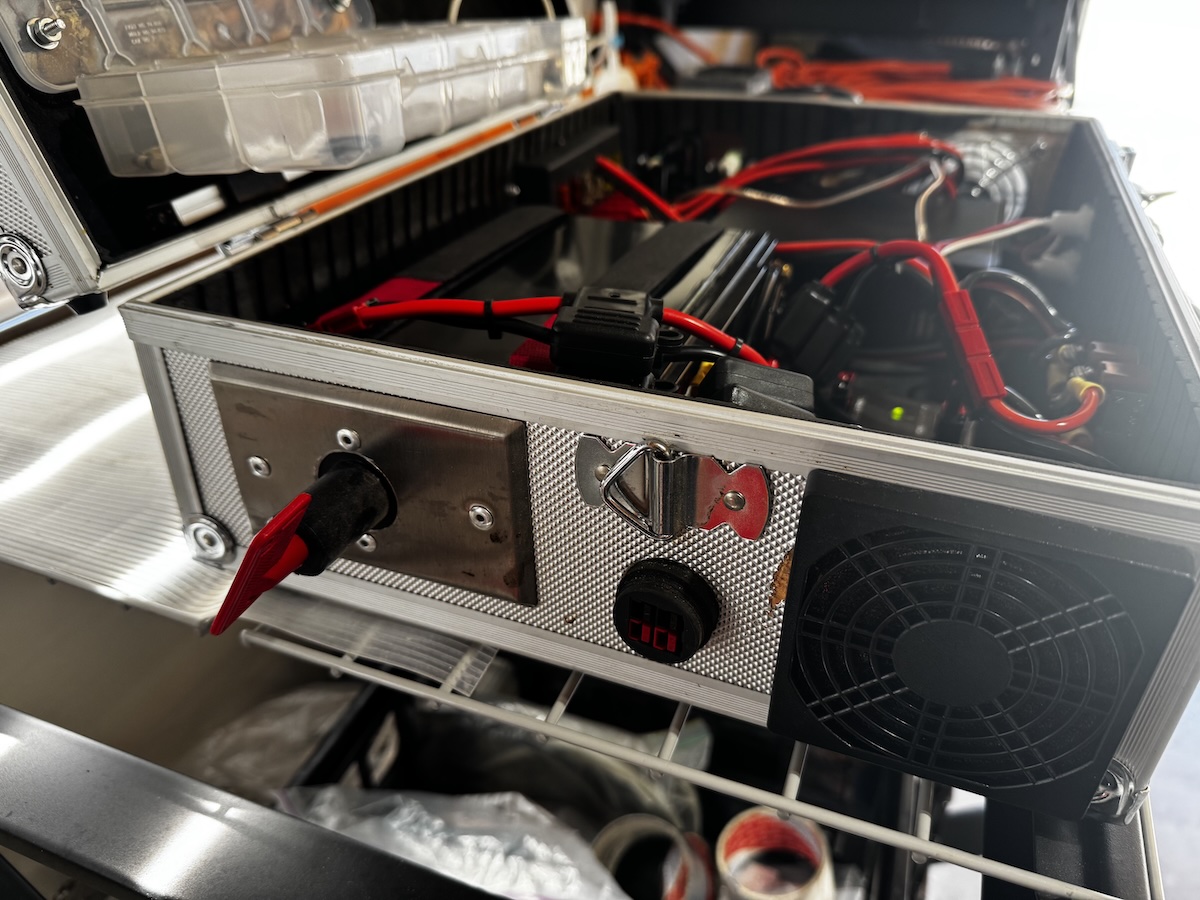

- Main DC battery disconnect switch
- External Battery bus extension connectors (to add more batteries)
- External Power supply connectors to Field Case Radio
- Internal Solar panel input via Epic PWR Gate
- Case from Harbor Freight
- Case LED light bar
|
|
|

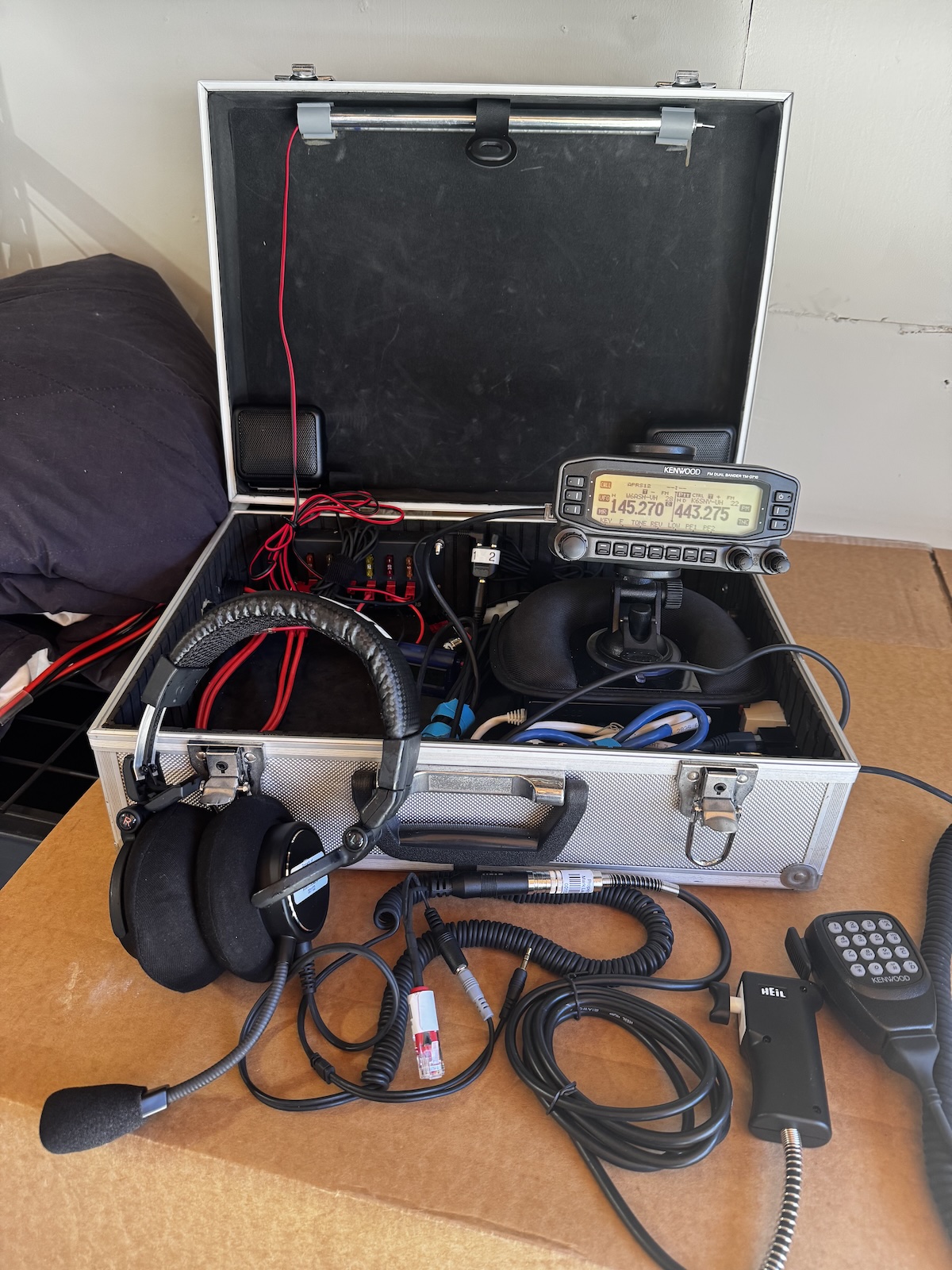

Field Post Case Radio, main items
Objective: provide dual-band 50W mobile radio support for single operator, with options.
Also includess
- Spare fuses in power supply case
- Anderson Power Pole connectors where-ever possible
- Main DC input external power connector

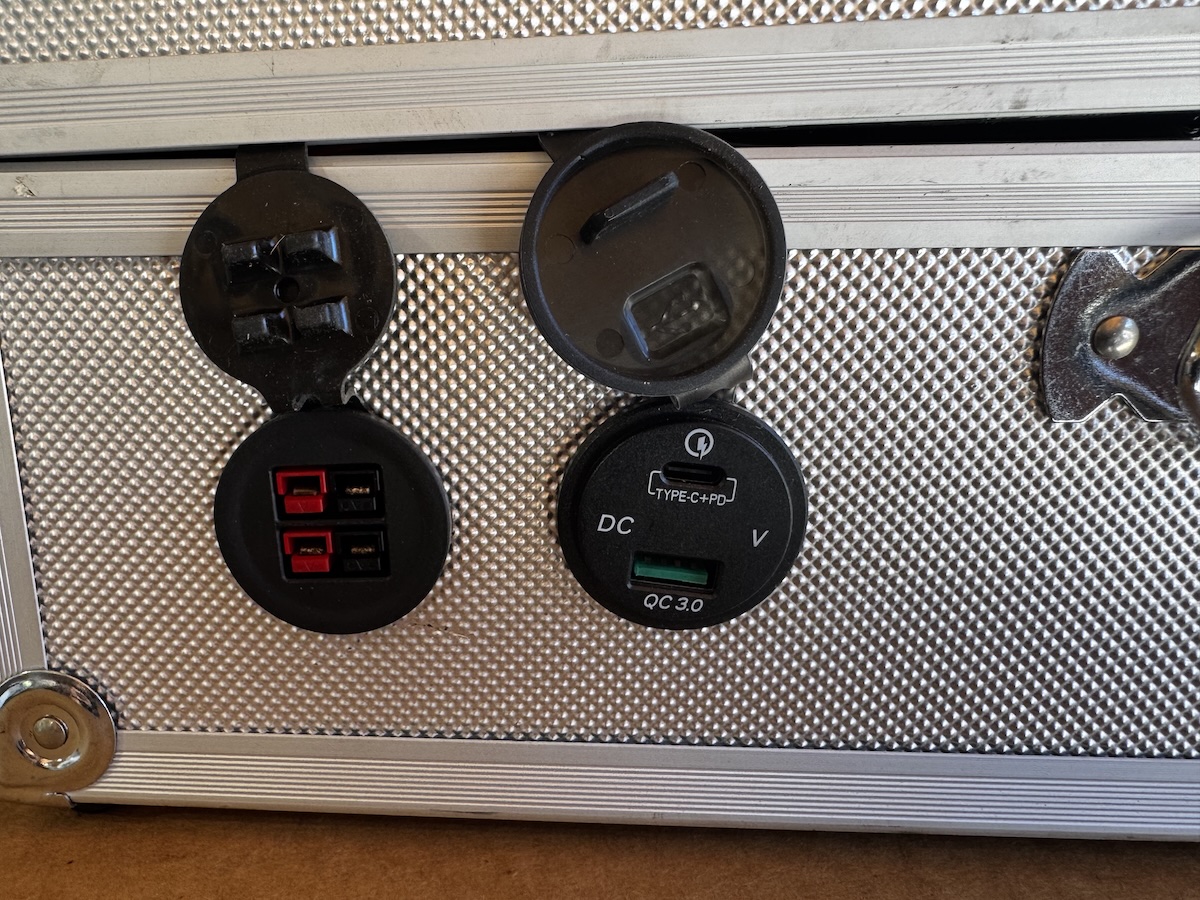

- USB Type-A QC 3.0 and USB Type-C PD power ports
- Case from Harbor Freight
- Case LED light bar

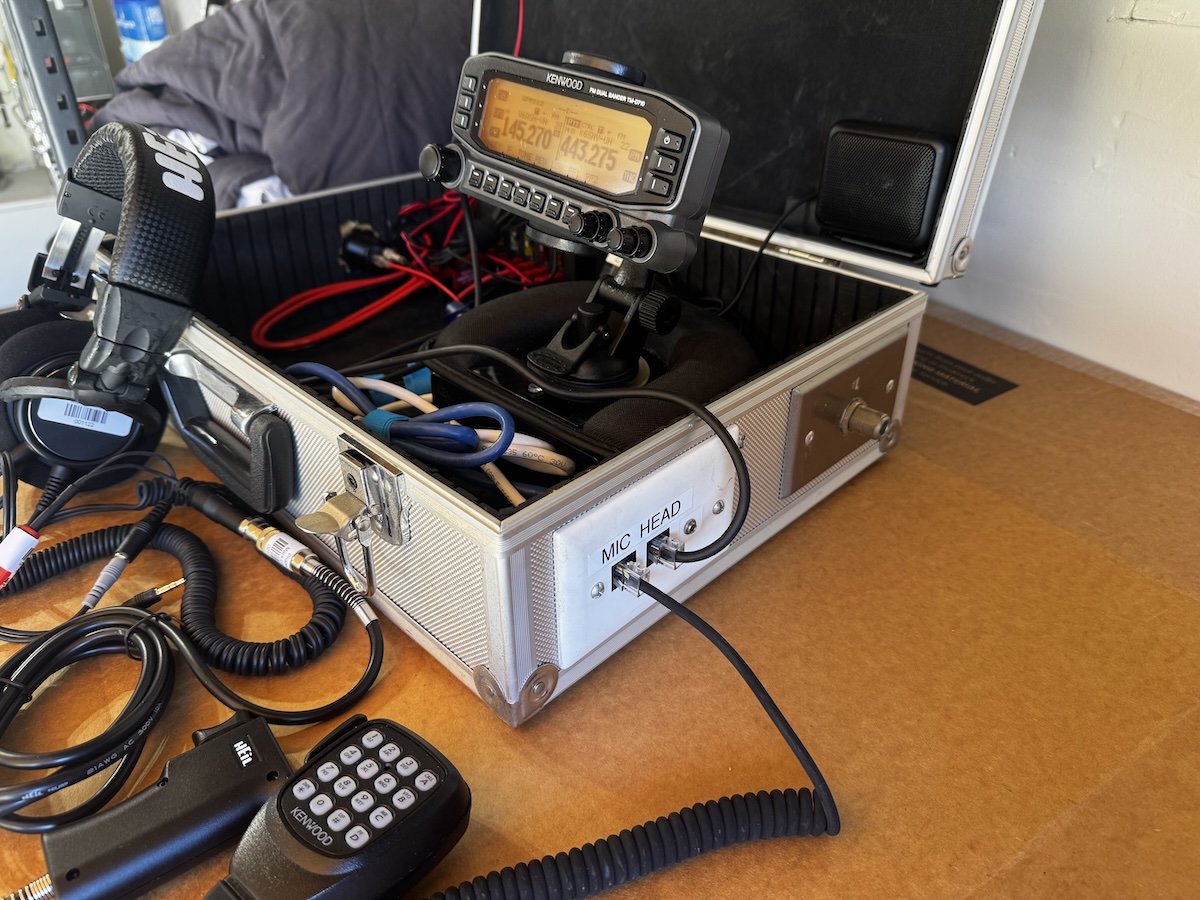

- External N antenna connector
- External RJ45 and 3/8" stereo audio to move fully move radio head to tabletop
- Heil adapter for Kenwood RJ45 PTT and microphones
- External speakers (in case lid) for audio
- Table stand base and holder for radio head
- Misc audio cables, connectors, and adapters
|
|
|

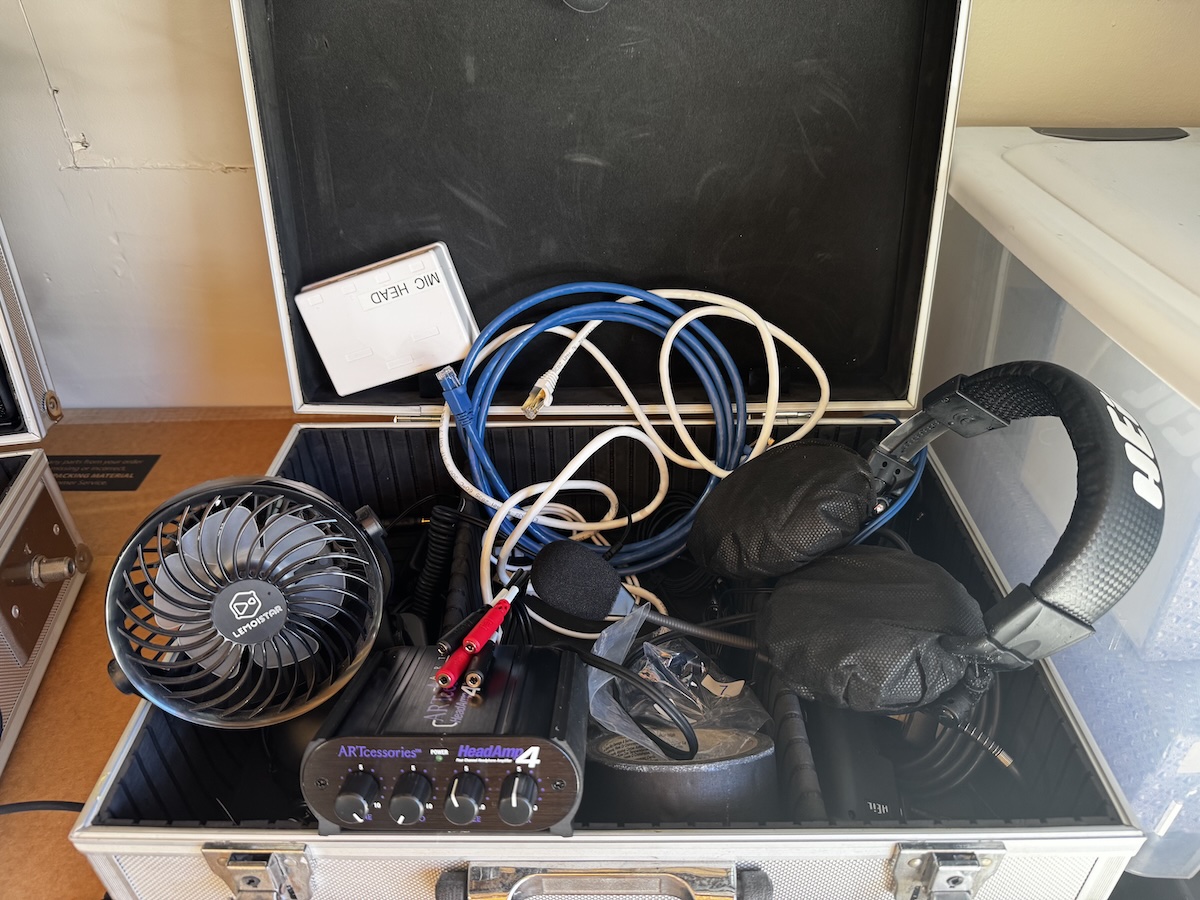

Field Post Case Radio, main items
Objective: extra equipment and separate audio support for a scribe
Also includess
- Misc audio cables, connectors, and adapters
- Case from Harbor Freight
- Battery and USB powered Fan for radio equipment cooling needs
- Gaffers tape
|
|
|
|
|
